Art.
020ESSN

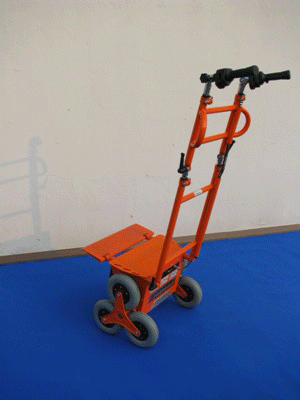

Battery powered stairclimbing truck
TRIPLE GOOSENECK

HIGH FLEXIBILITY

 saliscale flex
WITH ITS TRIPLE GOOSENECK IT IS A GOOD SOLUTION TO MOVE ANY ITEMS -

TECHNICAL SPECIFICATIONS
Capacity Kg. 170
Battery maximum charge level Ah. 12
Charging time Ore 6
Wheels diameter Cm. 20
Motor Watt. 250
Weight Kg. 40
Max overcome step height Cm. 20
Max. number of step Nr. 1.000
Battery voltage Volt. 24
Epicycloidal reduction gear R 1/64
Electromechanical brake
Adjustable speed - climb / descend da 0 a 24 gradini al minuto
Autobalanced - Extensible handle - Battery charge indicator
3 gooseneck for a maximum flessibility

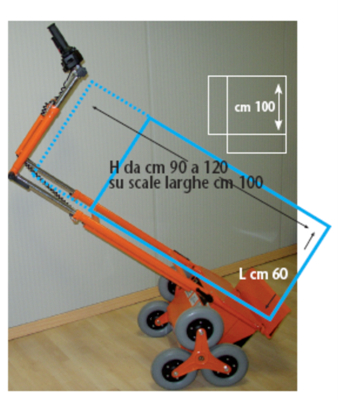

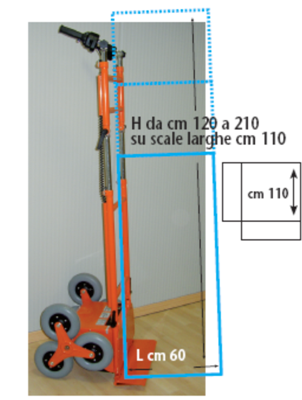

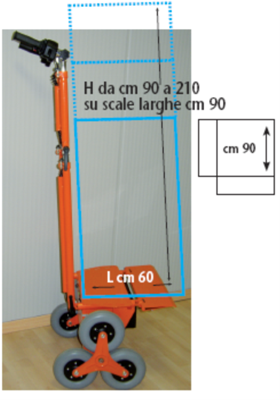

SIZES
Width mm 590
Length mm 500
Height min. mm 1.200
Height max mm 1.900
