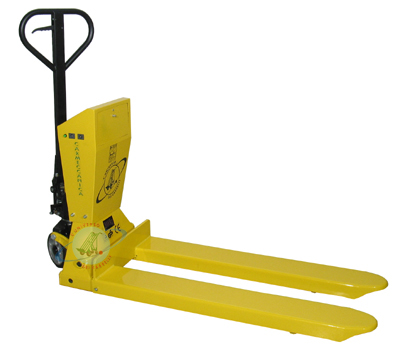

Art.TCRF PESATORE



PALLET SCALE TRUCK
6 digits lcd display



TECHNICAL SPECIFICATIONS

Capacity

Kg 2.000
Weight   Kg 141
Accuracy F.S. % 0,05
Capacity increments Kg 0,5
6 digits LCD display
Autozero, tare, gross/net weight, last weight value storing
Pieces counting function

Overall fork length

l mm 1.160

Width over forks

mm 540
Inner distance between forks   mm 210

Overall length

L mm 1.590

Lowered height

mm 88

Stroke height

mm 115

Raised height

mm 200

rubber steer wheels mounted on roller bearings

Ø mm 200

4 Nylon load rollers

Ø mm f74x70

Steer arc degrees 205°

Turning radius Wa mm 1.430

Working aisle for europallet 800x1.200

Ast mm 1.850

3 positions fingertip control for lift, lower and neutral positioning

Heavy gauge steel construction with continuous seam welds

Oven dried epoxy powder painting

15 hours battery included
Charger included
Net weight including battery  Kg 135
  • High precision and stability instrument with a linear weight signal.

  • Feeder/converter with 65.000 partitions

  • 5 Volt power supply c.c. with reference

  • 6 digits LCD screen 4 signaling LED
    7 buttons keyboards (OFF/ON button + 6 function buttons)

  • Long life internal battery 10.2 V c.c. 0,15 A

  • Working temperature -10°C / +40°C

  • Tare button

  • Block / Unblock tare memorization

  • MODE button to select between 3 ways of weighing
